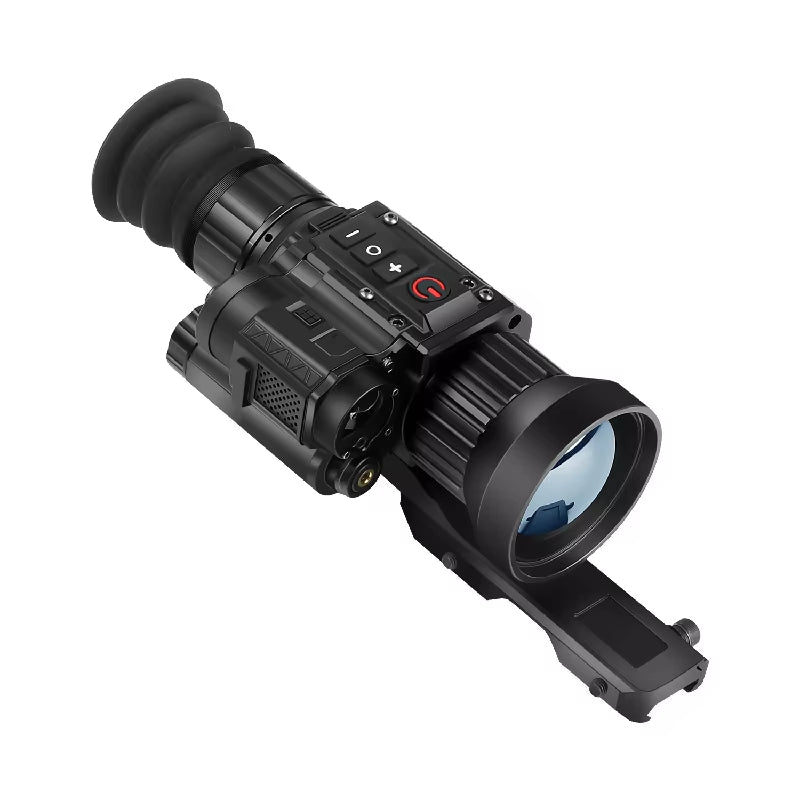

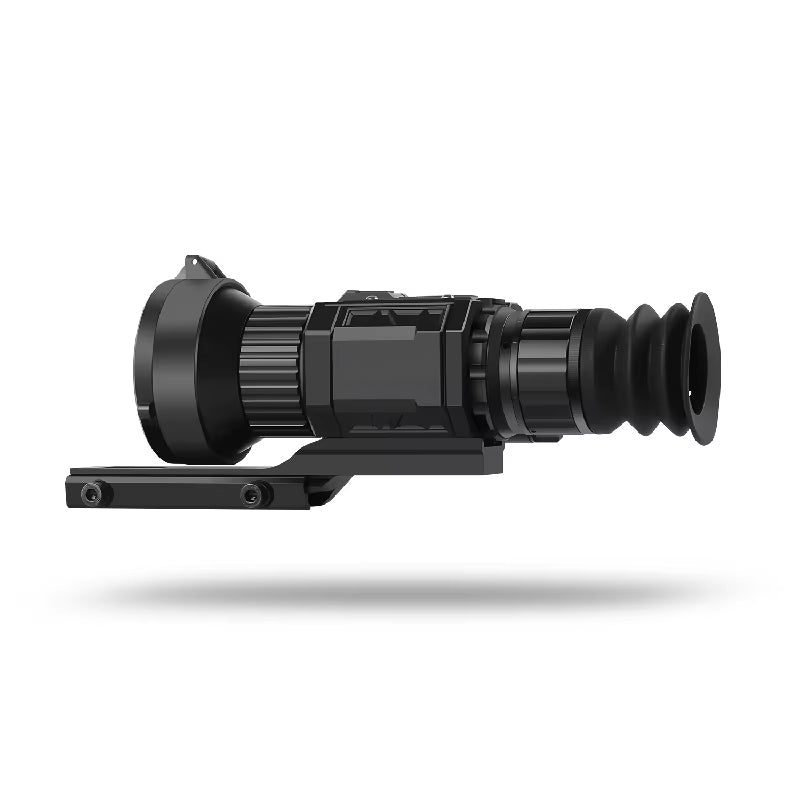

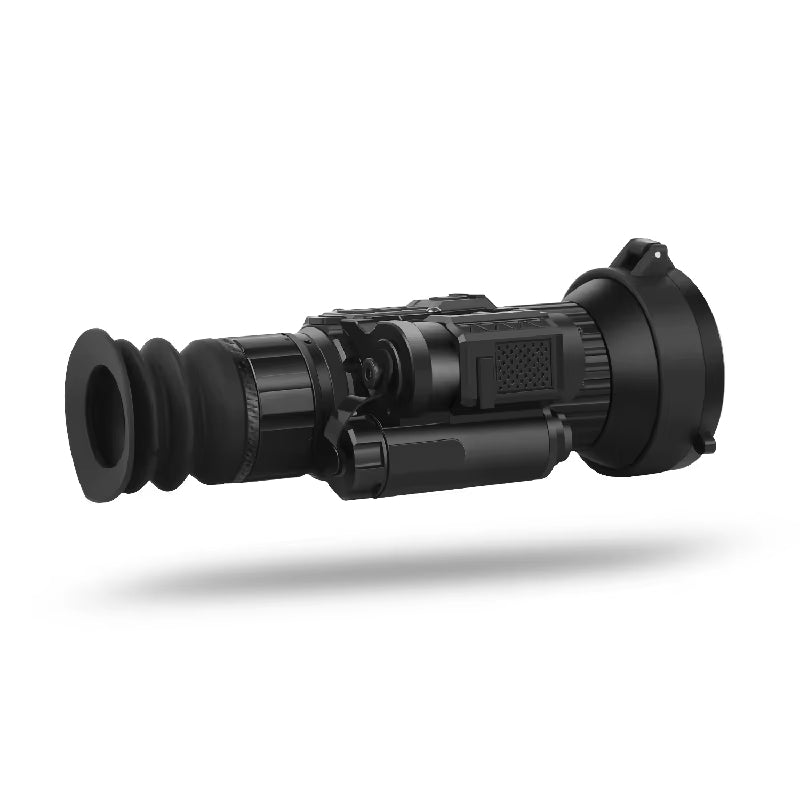

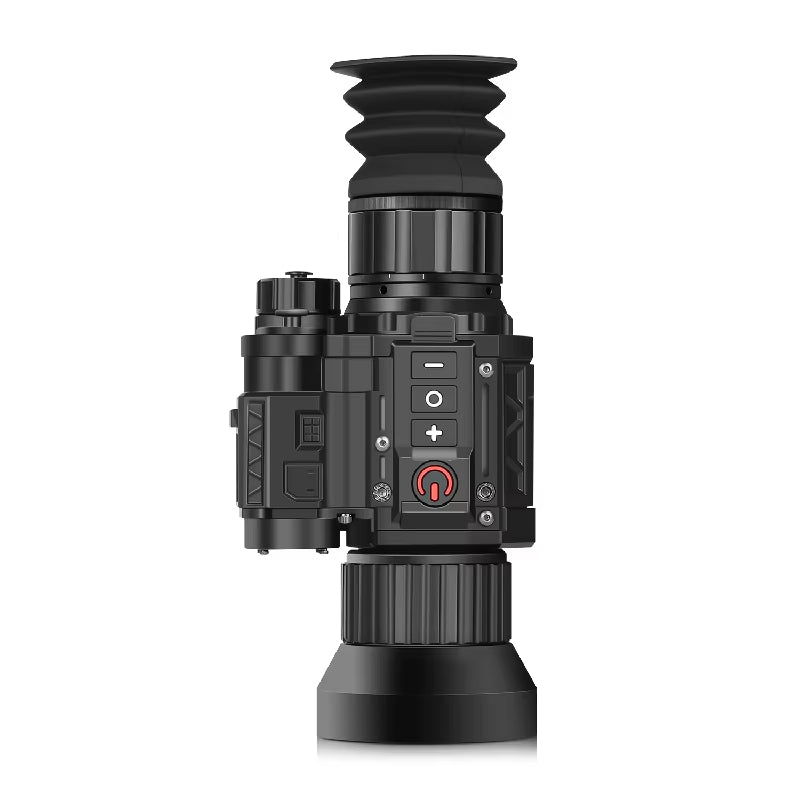

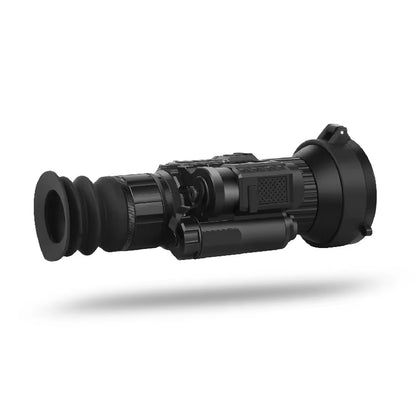

Day & Night Vision Monocular Camera Thermal Scope DETECTOR

Day & Night Vision Monocular Camera Thermal Scope DETECTOR

$135.75
$135.75 $280.00
Sold out
  • favorite Free Shipping
  • undo 30-Day Trial
  • local_shipping Easy Returns

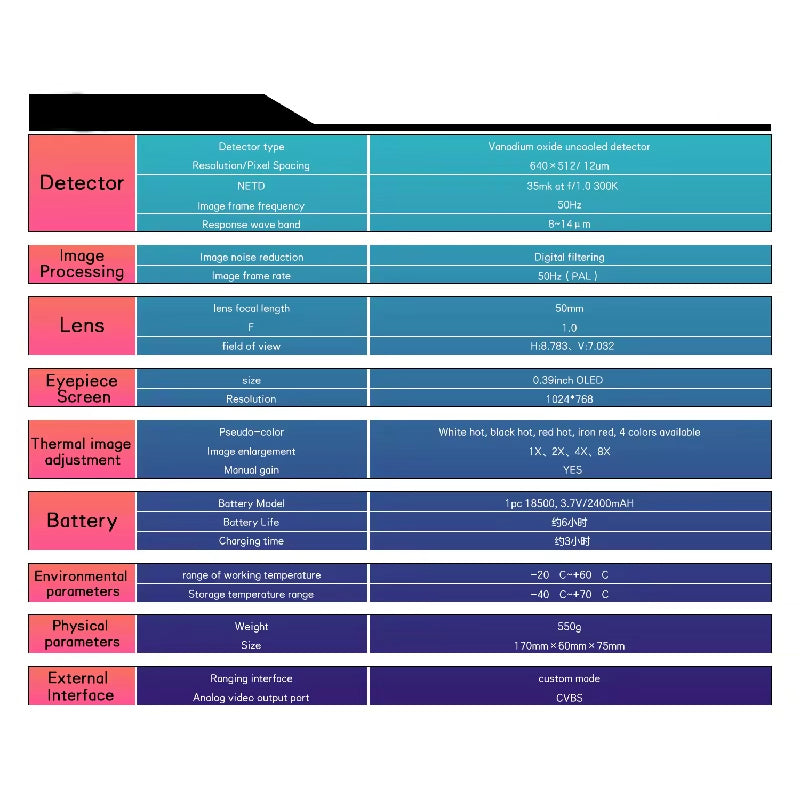

  • Advanced Detector: Utilizes a vanadium uncooled oxide detector with 640x512 resolution and 12μm pixel spacing, offering <35mK NETD at f/1.0 300K for superior thermal sensitivity, and an image frame frequency of 50Hz with a response band of 8~14μm.
  • Image Processing: Employs digital filtering for noise reduction and maintains a 50Hz image frame rate (PAL), ensuring clear and stable thermal imaging.
  • Lens Specifications: Features a 50mm focal length lens with f/1.0 aperture, providing a field of view of H:8.783° V:7.032° for wide and precise observation.
  • Eyepiece Screen: Equipped with a 0.39-inch OLED display at 1024x768 resolution for high-clarity viewing.
  • Thermal Image Adjustment: Offers 4 pseudo-color modes (Black-hot, White-hot, Red-hot, Iron red), manual gain adjustment, and digital magnification options of 1x, 2x, 4x, 8x for customizable viewing.
  • Battery and Power: Powered by 1pc 18500 battery (3.7V/2400mAh), providing about 6 hours of battery life and 3 hours charging time.
  • Environmental Parameters: Operates in temperatures from -20°C to +60°C and stores from -40°C to +70°C, suitable for harsh conditions.
  • Physical Parameters: Weighs 550g and measures 170x50x75mm, with external interfaces including a custom ranging interface and CVBS analog video output port.
    Item Name Thermal Imaging Rifle Scope
    Detector Type Uncooled Vanadium Oxide Detector
    Resolution 640 x 512
    Pixel Interval 12μm
    NETD Less than 35mK (25°C, F#=1.0)
    Frame Rate 50Hz
    Response Waveband 8μm to 14μm
    Focal Length 50mm
    Aperture F1.0
    Field of View 8.8° x 7.0°
    Display 1024x768, 0.39inch, OLED
    Palettes White Hot, Black Hot, Red Hot, Fusion
    Basic Magnification 2.6x
    Electronic Magnification 1x, 2x, 4x, 8x
    Battery Type Replaceable 18500 lithium battery
    Battery Operating Time Around 6h
    Weight 550g
    Dimension 170 x 60 x 75mm
