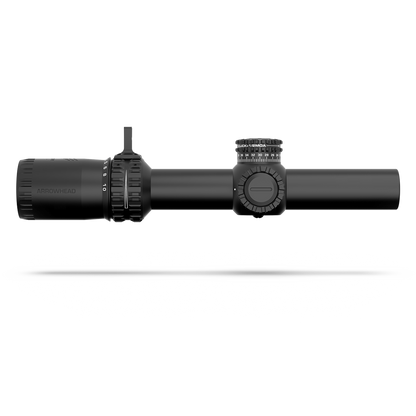

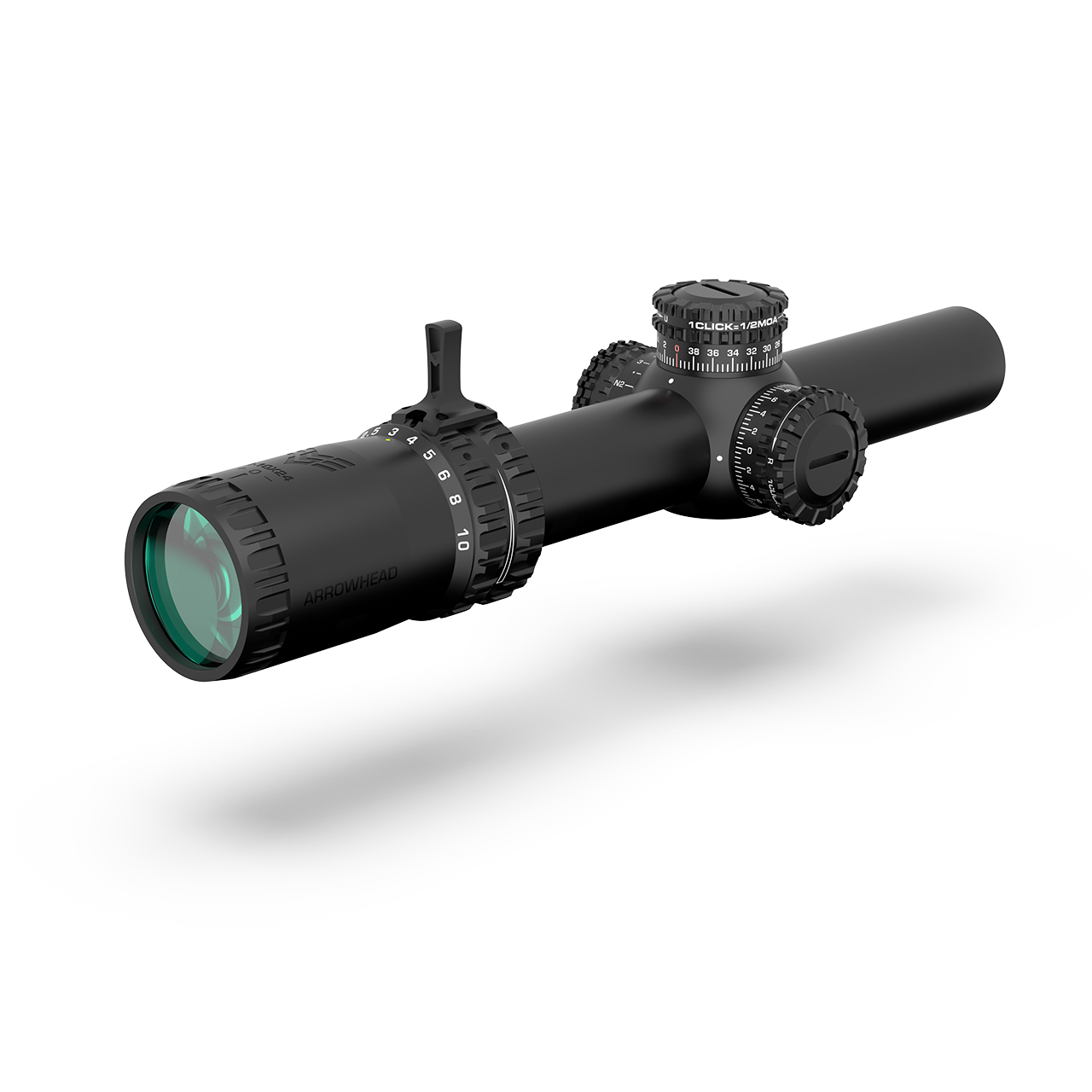

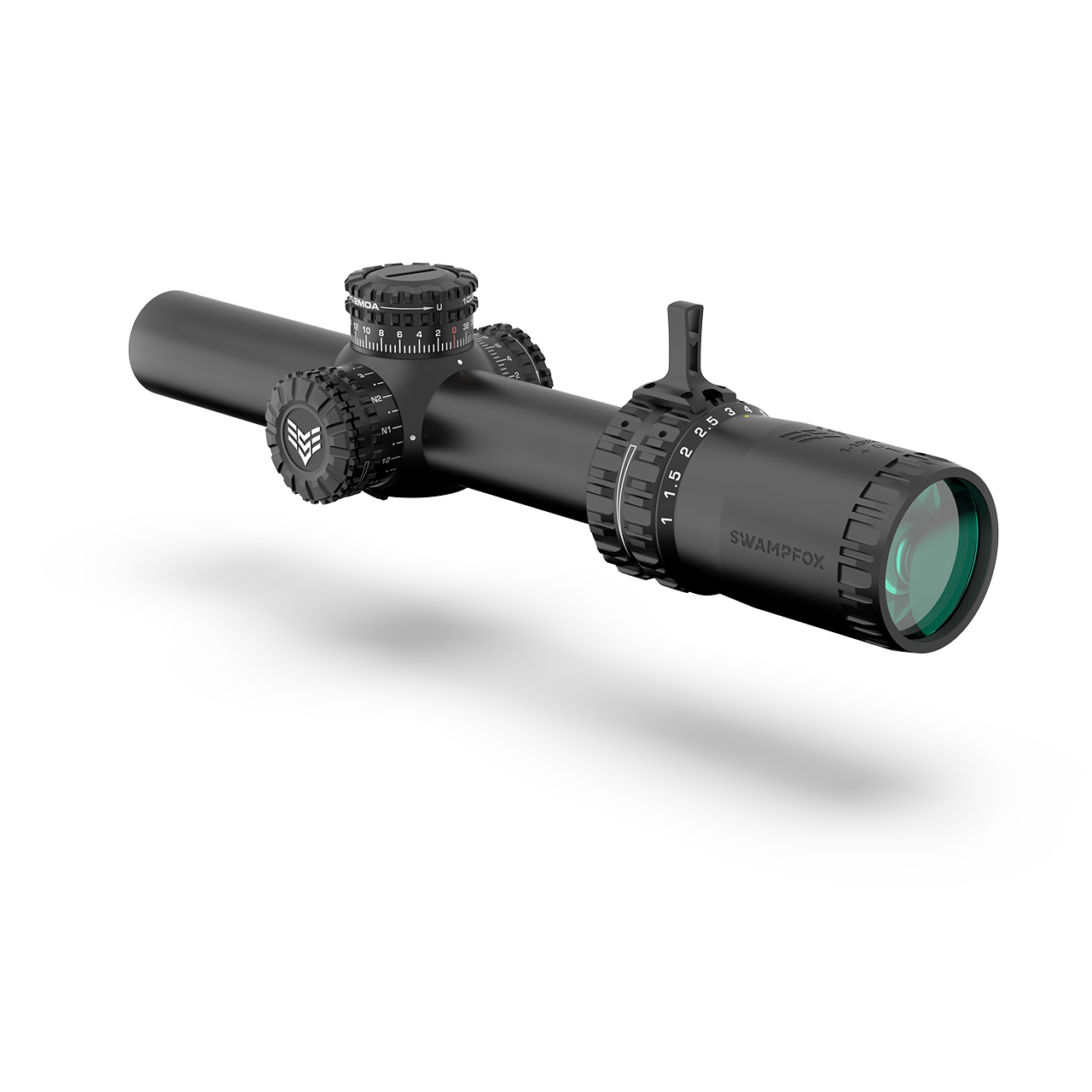

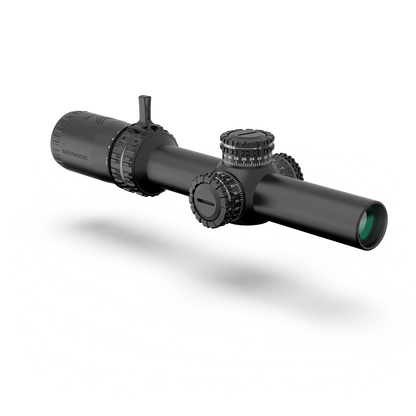

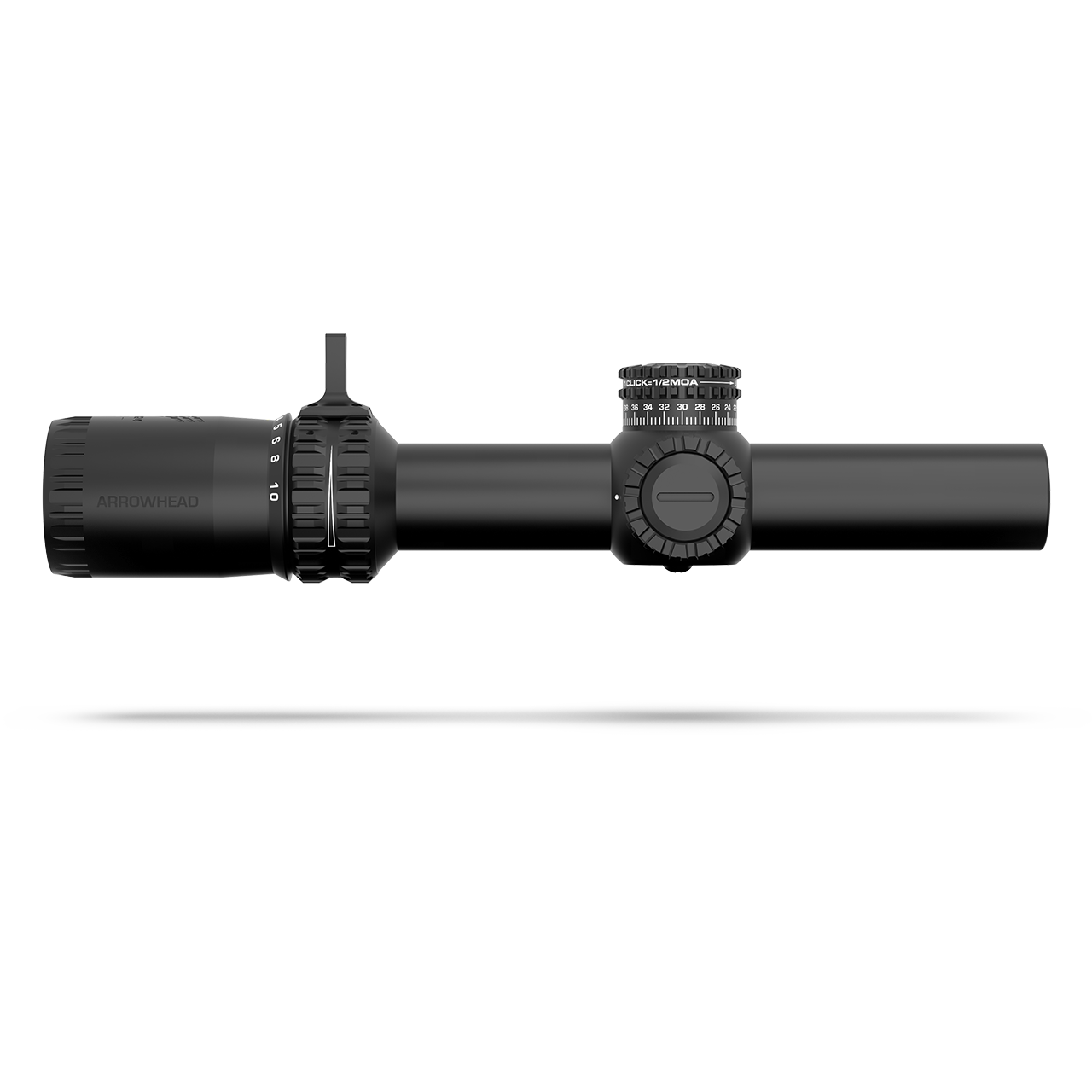

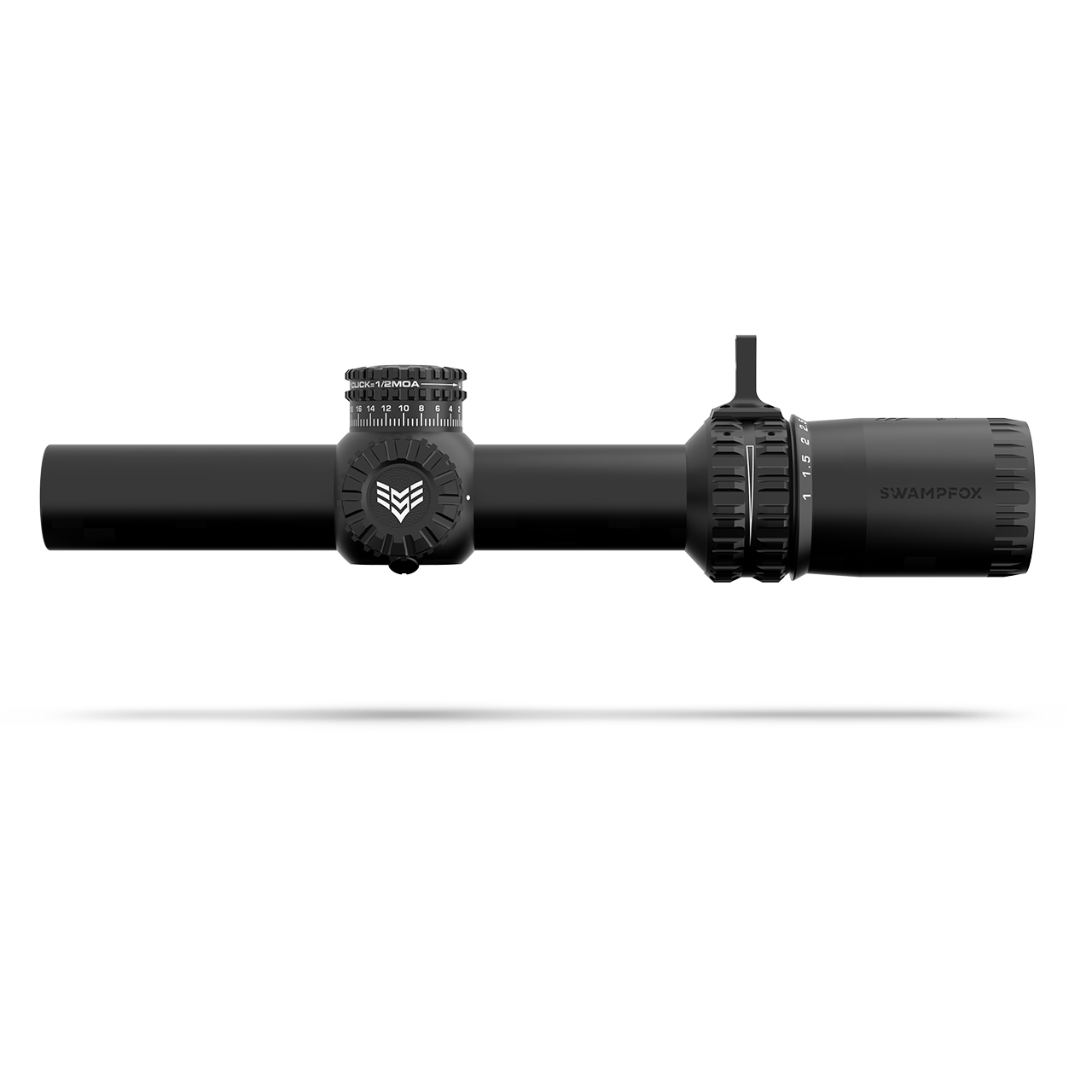

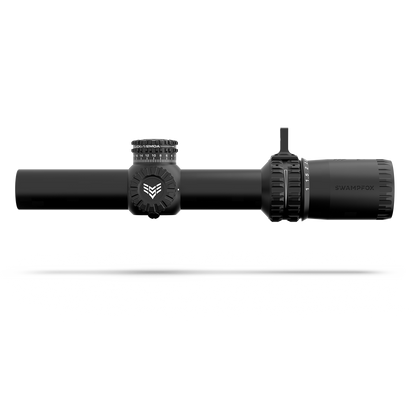

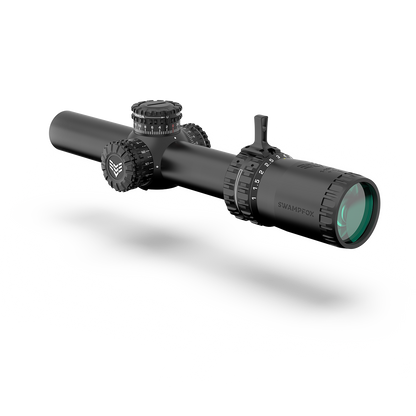

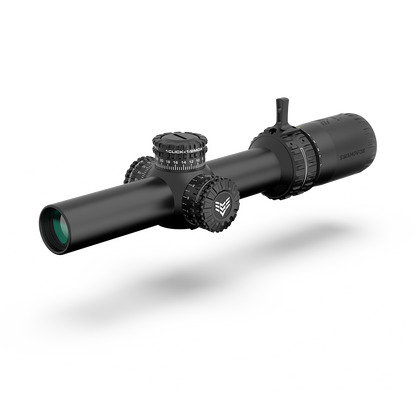

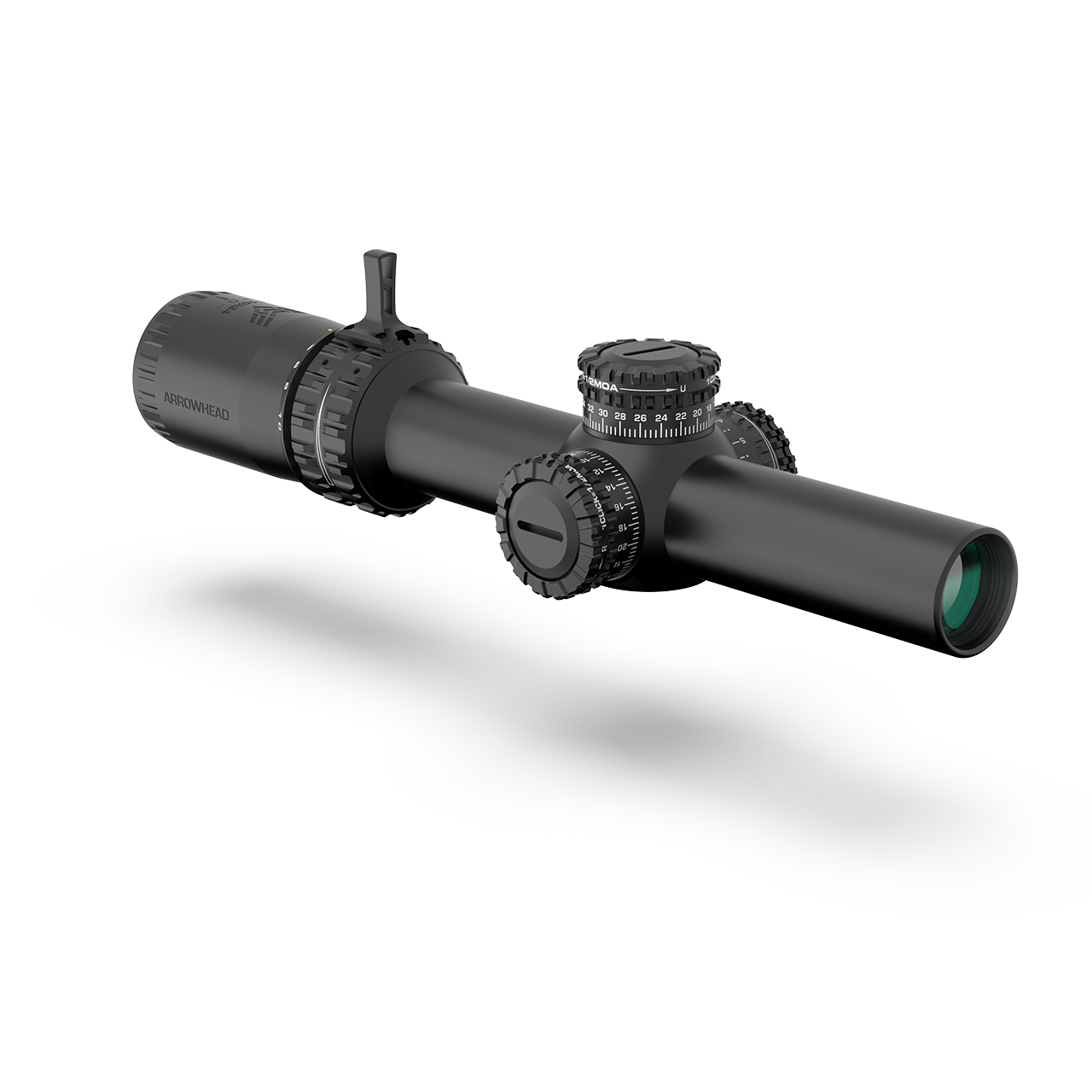

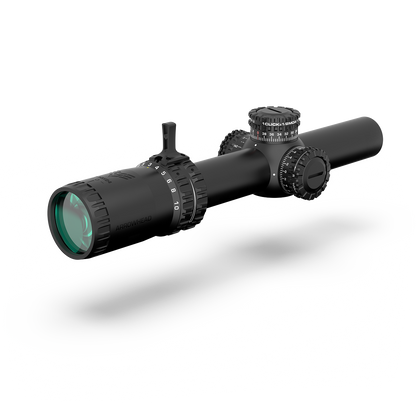

Swampfox Arrowhead SFP LPVO 1-10x24 Guerrilla Dot BDC Riflescope

Arrowhead is our flagship LPVO (low-power variable optic) series that exceeds all requirements for end-user applications. Every Arrowhead comes with push/pull locking turrets to ensure accuracy and prevent unintentional adjustments. Arrowhead also features a brighter sight picture, expansive field of view, and excellent resolution. Offered in three-second focal plane reticles: Guerrilla Dot BDC Long, Guerrilla Dot MOA Long, and Guerrilla Dot MIL, each with 12 red or green illumination settings. The Arrowhead is an excellent choice for both close quarters and long-distance engagements.

READY TO SERVE​

The Arrowhead LPVO series is designed to be our flagship LPVO, offering 1-6x, 1-8x, and 1-10x magnification options that are rugged and ready for tough use.

SECOND FOCAL PLANE
The second focal plane construction provides a consistent reticle size throughout all magnifications, offering a familiar sight picture and allowing for faster follow-up shots at different distances.

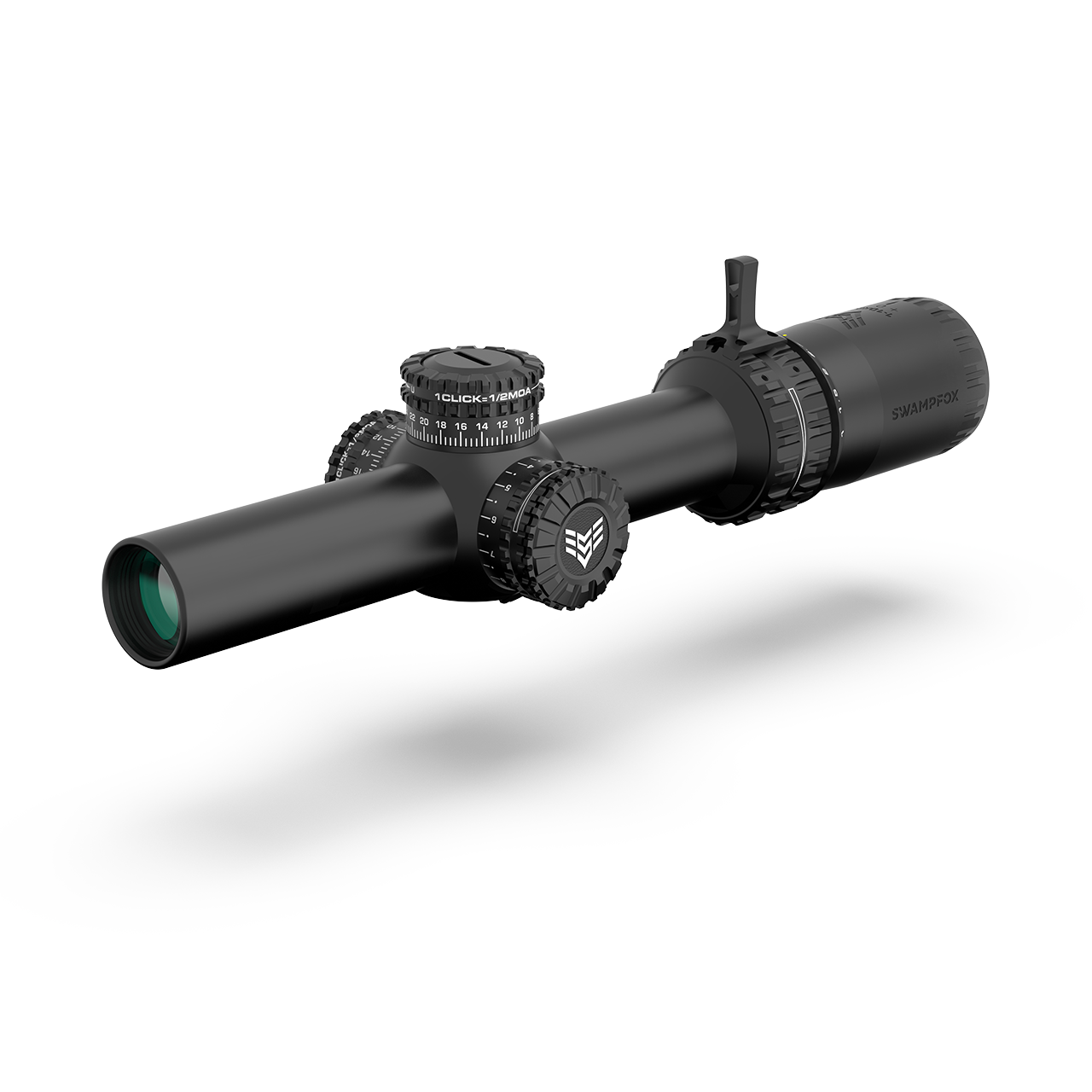

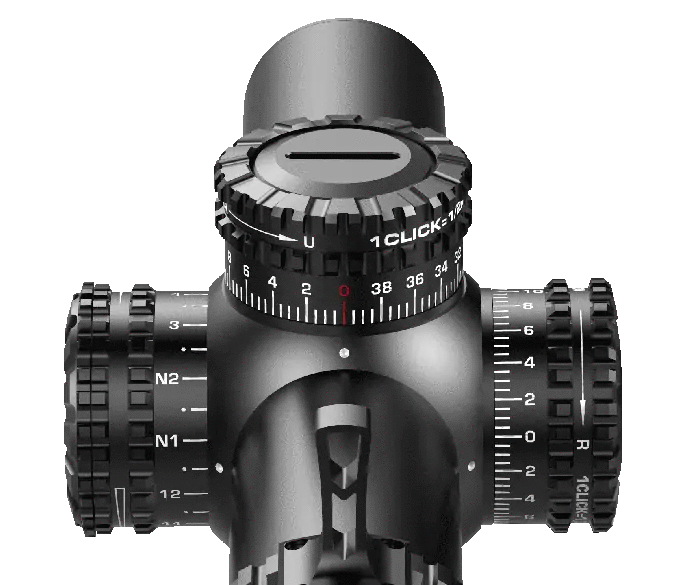

TURRETS​
Arrowhead was designed for demanding situations where you may not have access to tools for adjustments. The push/pull turret locking system allows for fast and accurate adjustments without tools. MOA reticles have a 0.5 MOA adjustment per click, while MIL reticles have a 0.1 MIL adjustment per click.

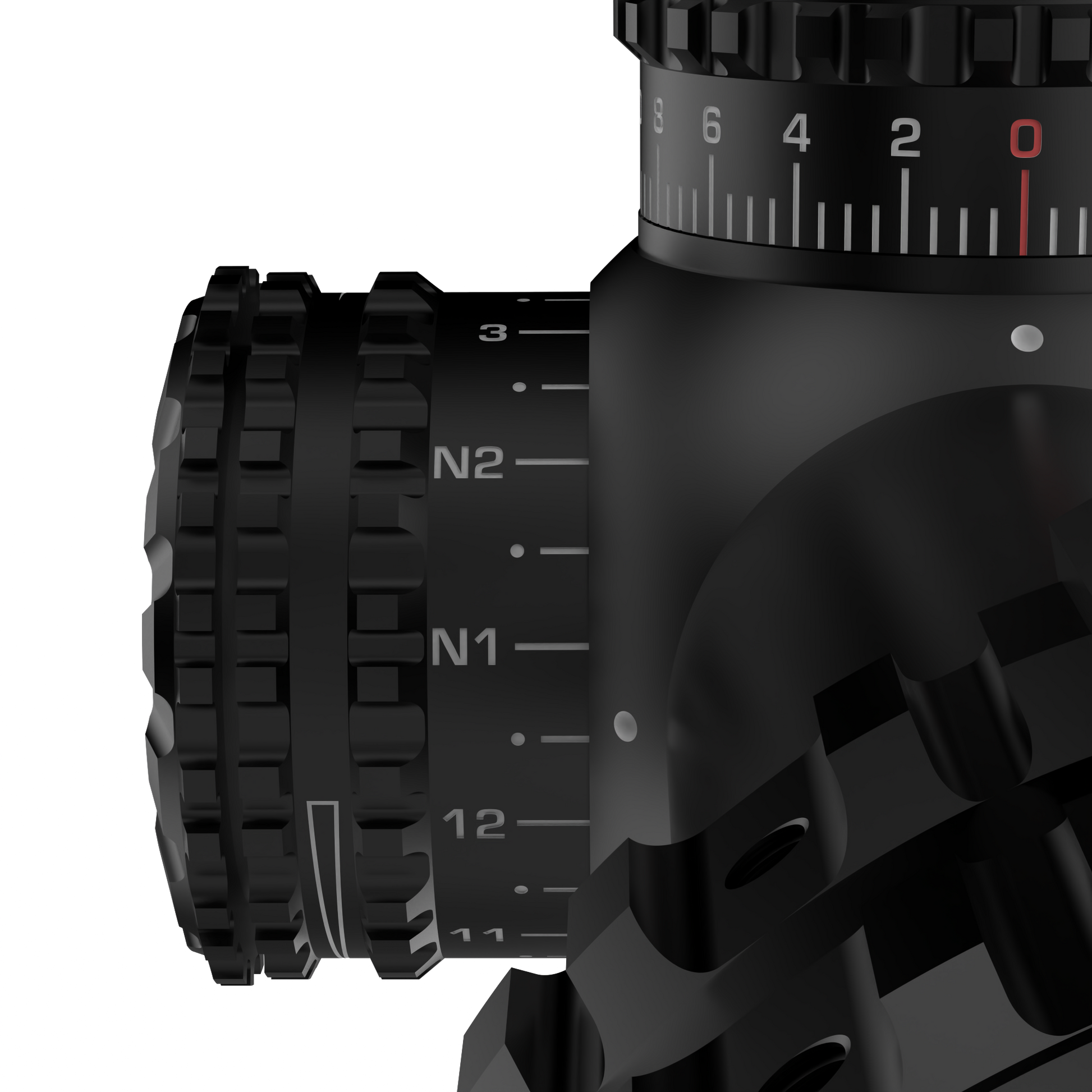

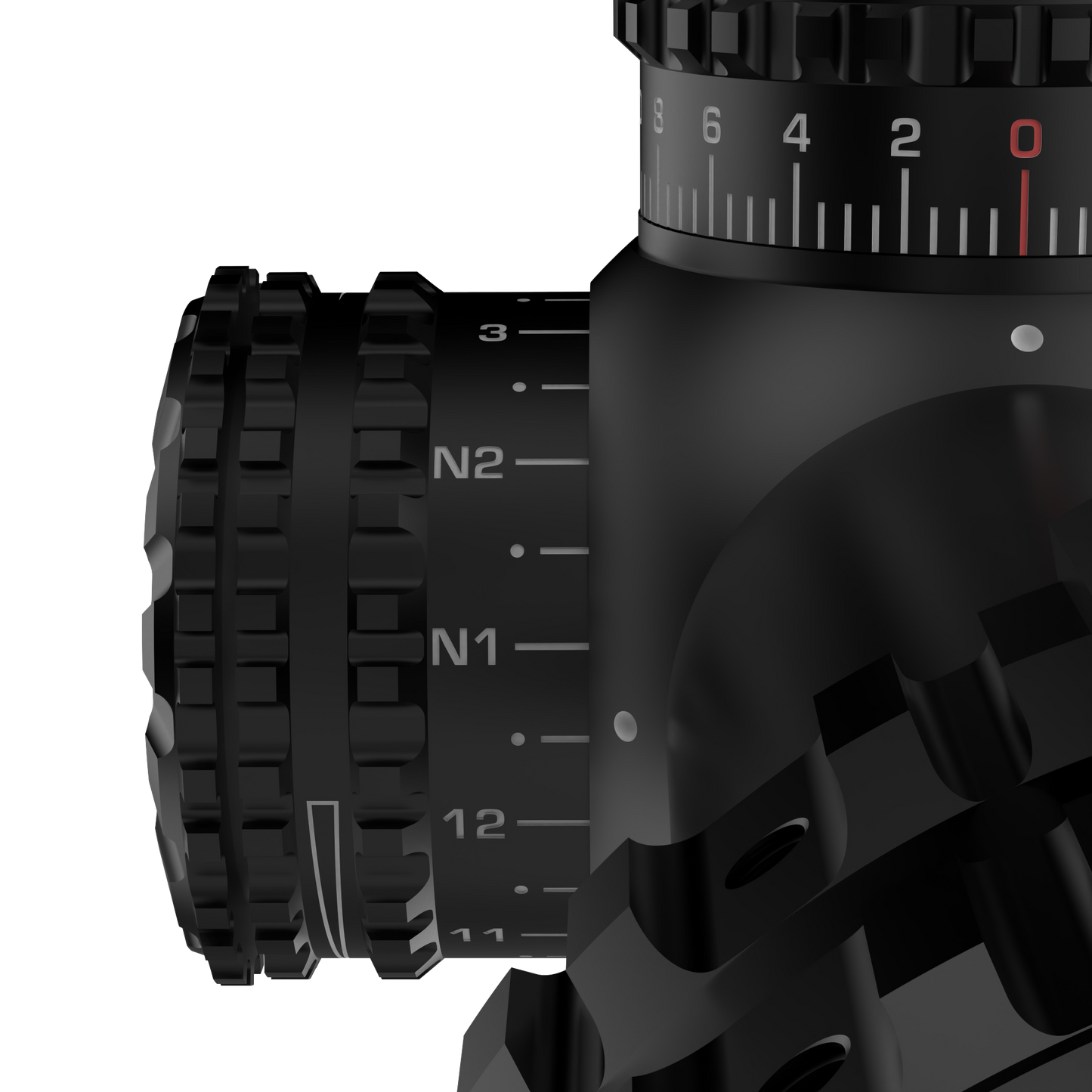

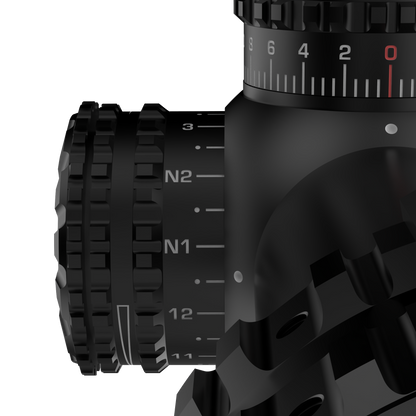

ILLUMINATION​
Arrowhead's dual LED emitters provide bright, daylight-level illumination for the etched reticle. Arrowhead features 12 illumination settings, with intermittent off settings to extend battery life and reduce wear on the adjustment turret. Also included are 2 illumination settings optimized for low light and compatible with NVG (night vision goggles) devices.

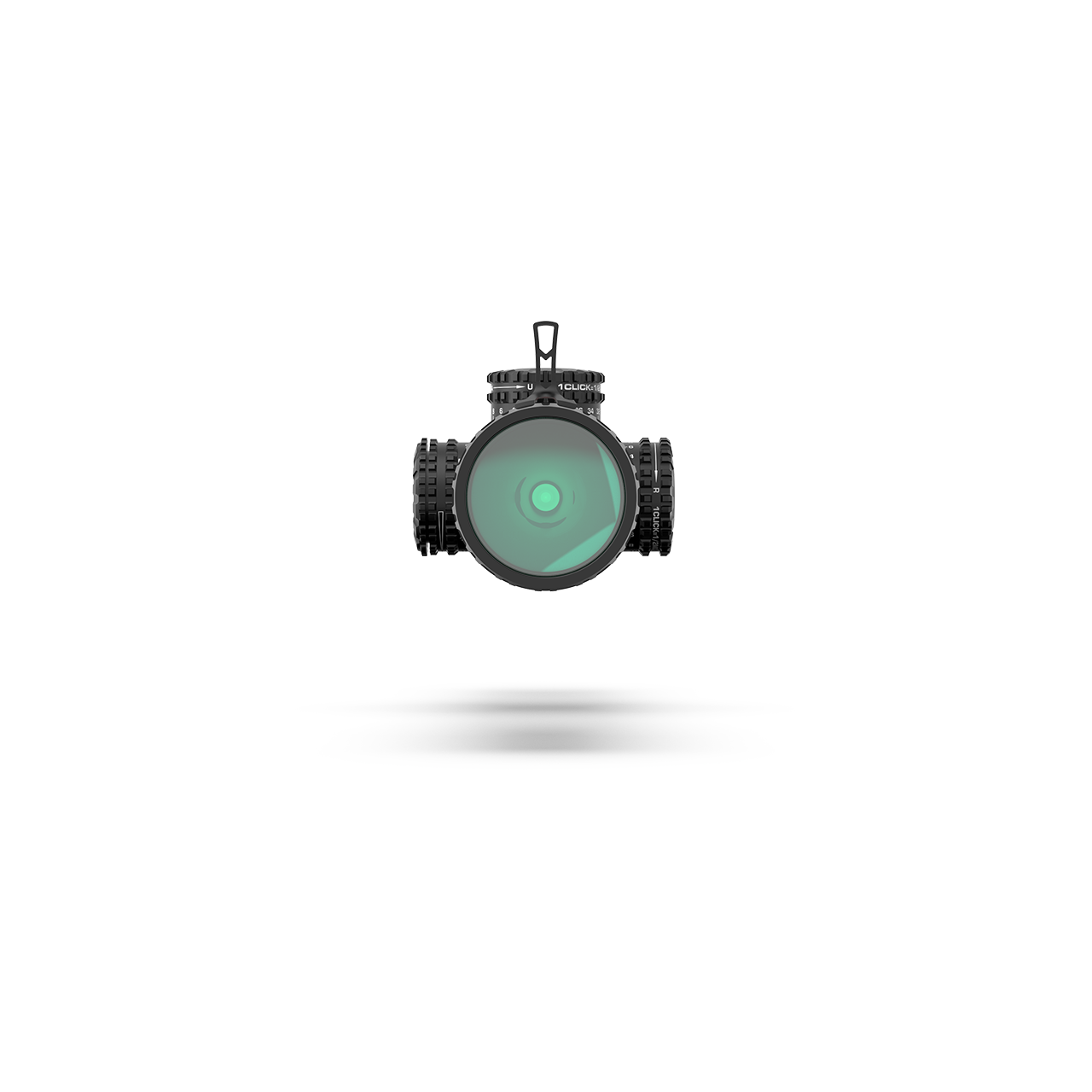

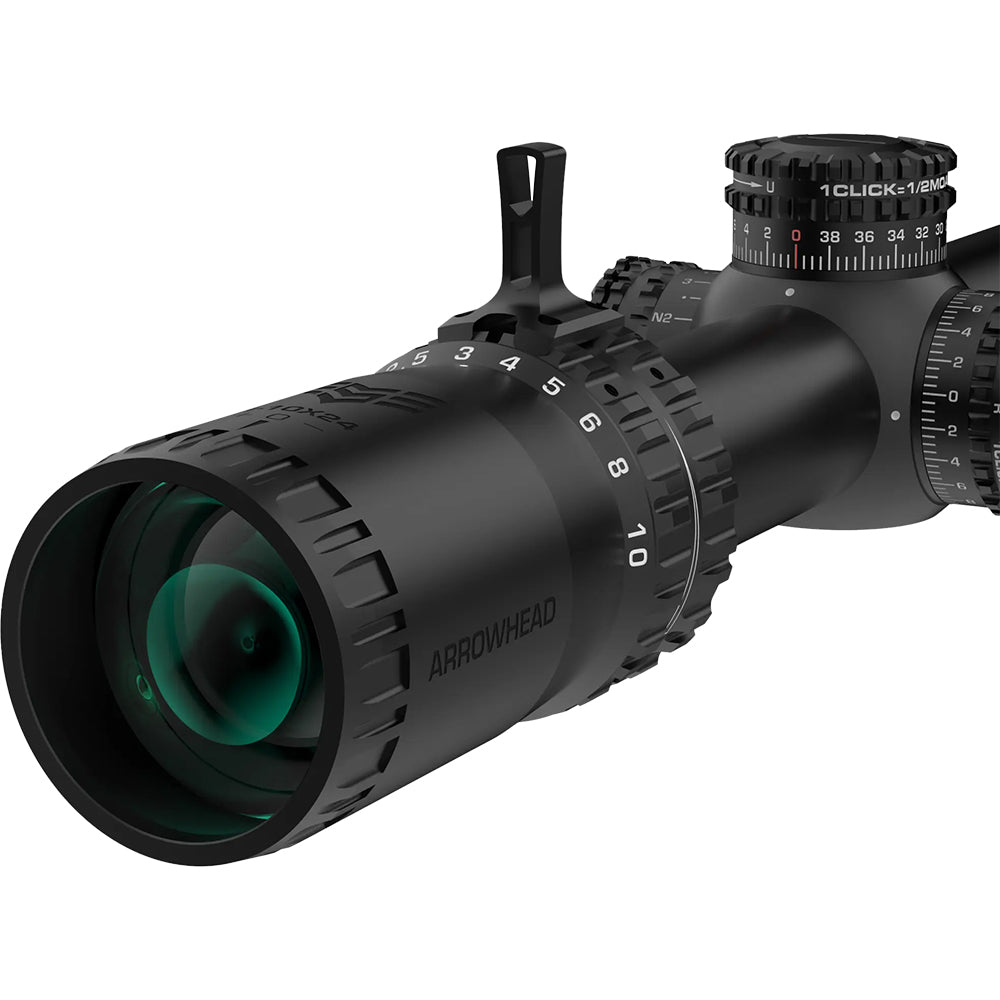

GLASS​
The quality of the glass is what sets LPVOs apart, and Arrowhead does not disappoint. Its advanced optical engineering provides a wider field of view and brighter sight picture. The lens is treated with anti-reflection, anti-fog, anti-scratch, and hydrophobic coatings for a tough and durable build.

ZERO RESET
The zero-reset feature allows for on-the-fly adjustments. To use this feature, set your desired zero and use a tool or coin to remove the locking bolt on the turret. Then adjust the turret to reflect your new zero and reattach the locking bolt.

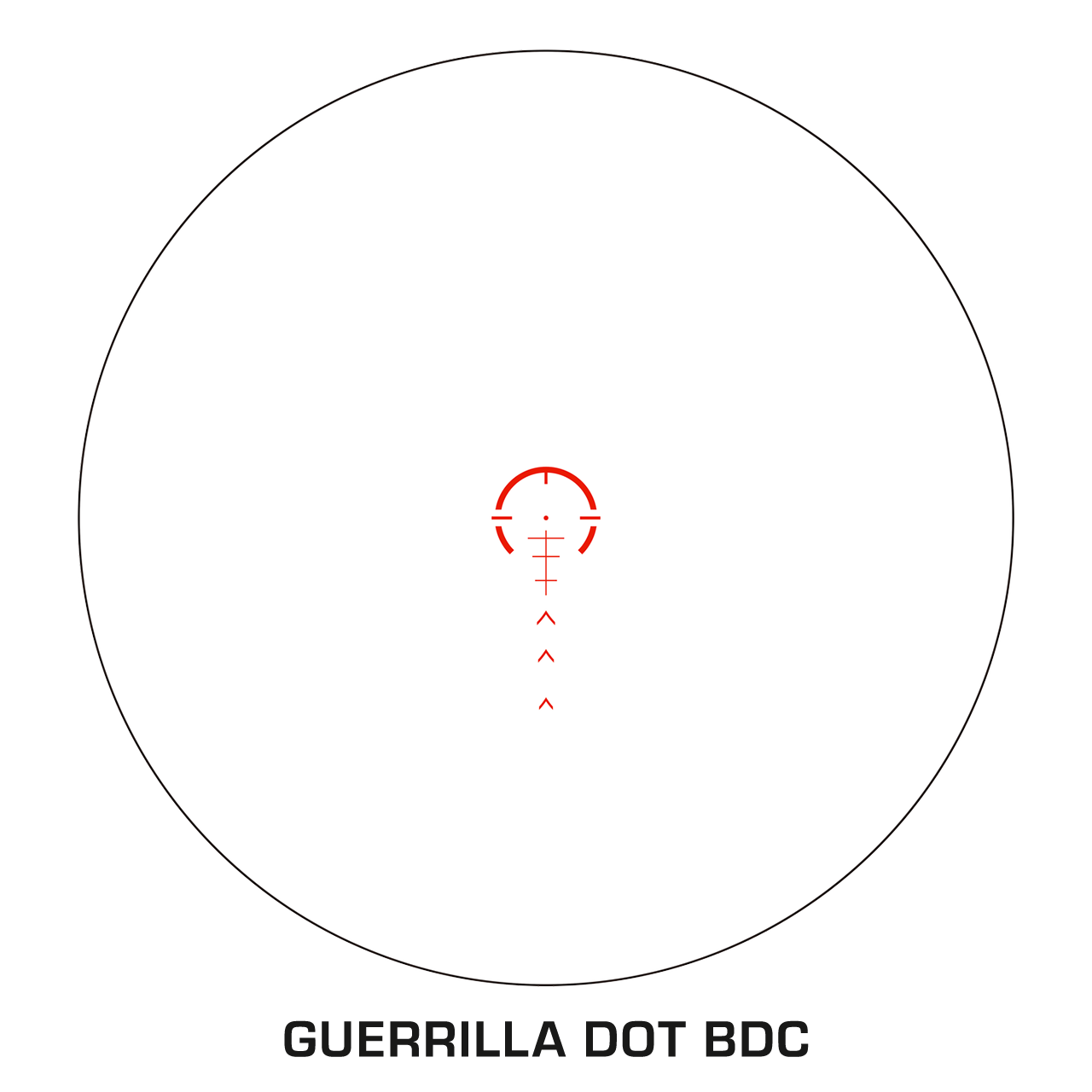

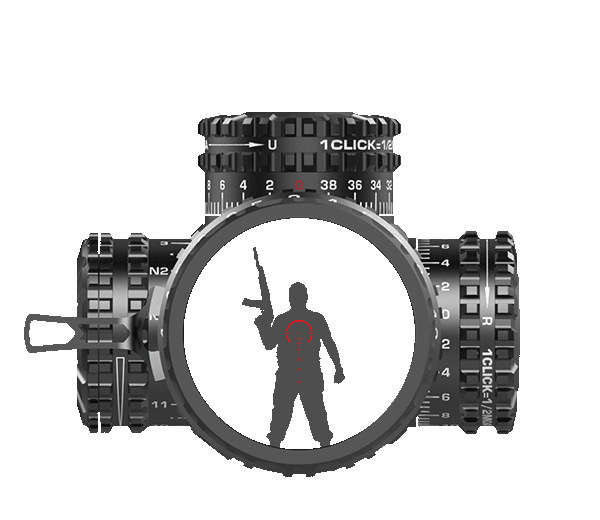

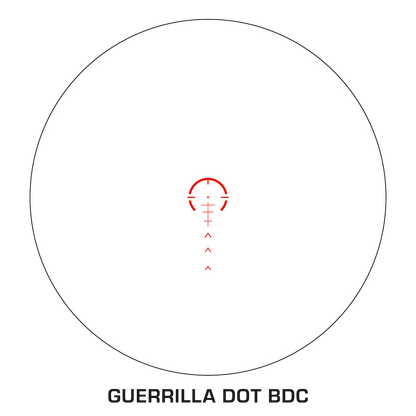

GUERRILLA DOT BDC LONG​
The Guerrilla Dot BDC Long reticle offers 5.56 NATO/.308 Win bullet drop compensation, with a 50/200 zero center dot for CQB (close quarters battle) and long-range capabilities. The reticle also includes holdover points for shots at 600, 700, and 800 yards. ​

Reticle

CALIBER CONSIDERATIONS

Guerrilla Dot BDC Long was designed primarily for the AR platform using the 5.56 NATO trajectory, based on the following ballistics parameters:​

• Lake City/Federal 5.56 NATO
• 55gr FMJ/XM193
• Ballistic Coefficient: .243
• Muzzle Velocity: 3101
• Barrel Length: 16”1

The reticle can also be used with 7.62 NATO / .308 Win. Based on the following:​

• Hornady .308 WIN 155gr
• Ballistic Coefficient: .435
• Muzzle Velocity: 2,865 fps

In the Box

• Scope
• Throw Lever
• Wrench for throw lever
• Flip Up Lens Caps
• Scope Cloth
• Battery
• Product Manual
• Reticle Manual
